Example

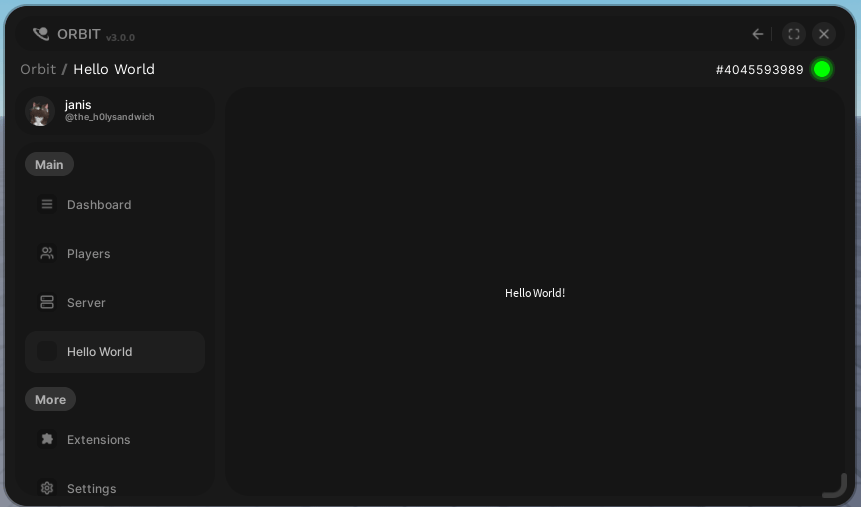

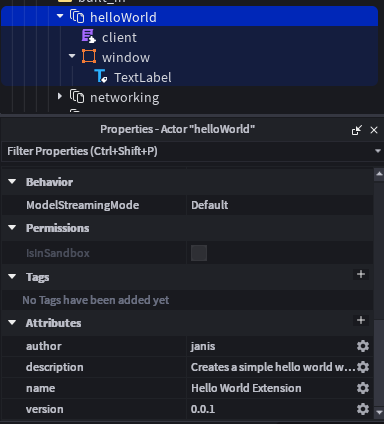

An example of a simple page that shows “Hello world!”. Start with the structure, since all we need is a window that shows hello world we need a client-side script to create it and a frame that has the content.

^{The class is decorative}

Now for the code, we need to make sure the API has permission:

return function(api, ext)
	if not api.navkit then
		warn("Unable to access Navkit, aborting.")
		return
	end
end

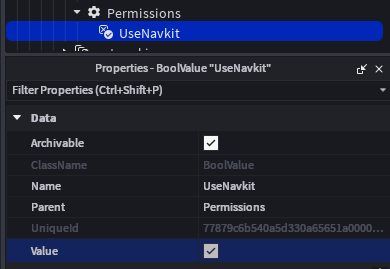

Now apply a permission too since this will just error every time:

Good! Now to actually create the window we need a category first. In this example we’ll just reference a category made by Orbit, orbit.main.

return function(api, ext)
	if not api.navkit then
		warn("Unable to access Navkit, aborting.")
		return
	end
	local window = ext.window
	api.navkit.newButton(
		"helloWorldButton", -- id
		{
			category = "orbit.main",
			name = "Hello World", -- what is displayed on the button
			icon = nil, -- optional, nil cus im lazy
			layoutorder = 99, -- optional, put it as last
			clone = false, -- optional, we don't want to clone our window
		},
		window
	)
end

And done! That’s it.

Have fun creating extensions!
Please follow our guidelines when doing so.
